20-20537-1

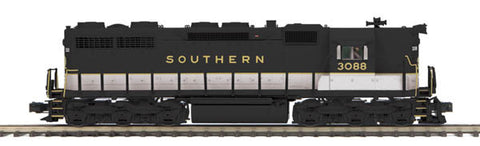

MTH 20-20537-1 - SD-35 Diesel Engine "Southern" w/ PS3 (Hi-Rail Wheels)

  • 41996
  • Save $ 79


  • Road Name: Southern (High Nose)
  • Product Line: Premier
  • Scale: O Scale
  • Release: Feb. 2016
  • Intricately Detailed Durable ABS Body
  • Die-Cast Truck Sides, Pilots and Fuel Tank
  • Metal Handrails and Horn
  • Metal Body Side Grilles
  • (2) Handpainted Engineer Cab Figures
  • Authentic Paint Scheme
  • Metal Wheels, Axles and Gears
  • (2) Remote Controlled Proto-Couplers
  • O Scale Kadee-Compatible Coupler Mounting Pads
  • Prototypical Rule 17 Lighting
  • Directionally Controlled Constant voltage LED Headlights
  • Lighted LED Cab Interior Light
  • Illuminated LED Number Boards
  • Lighted LED Marker Lights
  • (2) Precision Flywheel-Equipped Motors
  • Operating ProtoSmoke Diesel Exhaust
  • Onboard DCC/DCS Decoder
  • Locomotive Speed Control In Scale MPH Increments
  • Proto-Scale 3-2 3-Rail/2-Rail Conversion Capable
  • 1:48 Scale Proportions
  • Proto-Sound 3.0 With The Digital Command System Featuring: Freight Yard Proto-Effects
  • Unit Measures:17 1/2" x 2 1/2" x 4 5/16"
  • Operates On O-42 Curves
Diesel DCC Features
  • F0 Head/Tail light
  • F1 Bell
  • F2 Horn
  • F3 Start-up/Shut-down
  • F4 PFA
  • F5 Lights (except head/tail)
  • F6 Master Volume
  • F7 Front Coupler
  • F8 Rear Coupler
  • F9 Forward Signal
  • F10 Reverse Signal
  • F11 Grade Crossing
  • F12 Smoke On/Off
  • F13 Smoke Volume
  • F14 Idle Sequence 3
  • F15 Idle Sequence 2
  • F16 Idle Sequence 1
  • F17 Extended Start-up
  • F18 Extended Shut-down
  • F19 Rev Up
  • F20 Rev Down
  • F21 One Shot Doppler
  • F22 Coupler Slack
  • F23 Coupler Close
  • F24 Single Horn Blast
  • F25 Engine Sounds
  • F26 Brake Sounds
  • F27 Cab Chatter
  • F28 Feature Reset

Produced from 1964 to 1966, the SD35, along with its four-axle GP35 sibling, marked both an end and a beginning. They were the last road diesels to use the EMD 567 motor that had powered switchers, F-units, and Geeps since 1939 (so named because each cylinder displaced 567 cubic inches). For the horsepower race of the 1960s, EMD tweaked the 567 to a turbocharged V-16 delivering 2500 hp. That was it for the 567, however, and in 1966 the baton was passed to the more powerful model 645. But while the "35 line" diesels ushered out an old motor, they ushered in a new look. Their angled cab roofs and the clean, squared-off lines of their car bodies established the look of EMD road power for the next three decades.
