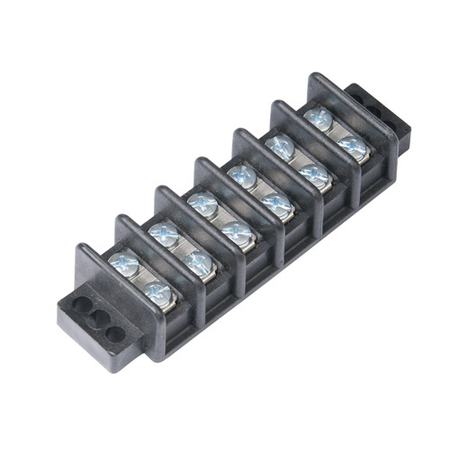

Del City 70016 - 6-Port Terminal Block

• Product Sku: 70016
• Product Line: Del City
• Terminal Block, 6 Gang, 30 Amp, 600V (1 MIN

Product Group: Terminal Blocks
Product Type: Screw-Type Terminal Blocks
Voltage: 600V AC/DC
Amperage: 30 Amp
Connection Contacts: 6 Gang
Type: Screw-Type
Stud Size: M4
Standards: RoHS

Screw terminal blocks provide a common area to neatly connect multiple wire connections. The blocks are an individual gang/non bussed screw terminal blocks that joins positive or negative connections for either AC or DC applications. Each barrier on the block is spaced 0.41" to provide protection to the #8 screw mounting areas. The bars on the screw terminal block are thermoplastic and feature copper screw connection points. The screw terminal blocks selection from Del City features blocks ranging in length form 2 gang to 12 gang and can accept #10-22 AWG sized wires. Protect, connect, and organize your wire connections with a high quality and reliable screw terminal block.
