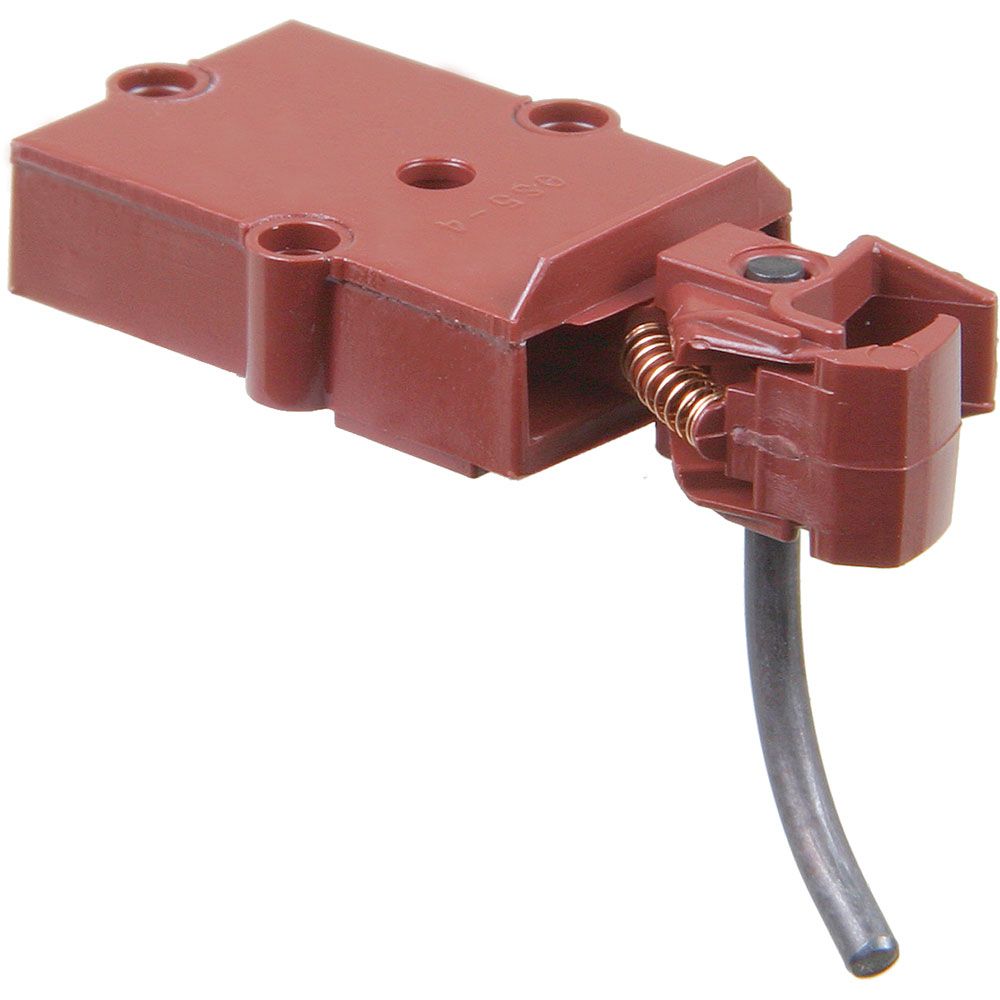

Kadee 801 - Medium Centerset Plastic Couplers w/ Plastic Gearboxes (Boxcar Red)
Kadee 801 - Medium Centerset Plastic Couplers w/ Plastic Gearboxes (Boxcar Red)
Kadee 801 - Medium Centerset Plastic Couplers w/ Plastic Gearboxes (Boxcar Red)
Kadee 801 - Medium Centerset Plastic Couplers w/ Plastic Gearboxes (Boxcar Red)
Kadee 801 - Medium Centerset Plastic Couplers w/ Plastic Gearboxes (Boxcar Red)
Kadee 801 - Medium Centerset Plastic Couplers w/ Plastic Gearboxes (Boxcar Red)

Kadee 801 - Medium Centerset Plastic Couplers w/ Plastic Gearboxes (Boxcar Red)

SKU: KAD-801
Price
$ 7.19
Taxes and shipping calculated at checkout

Announcement Date:

Guaranteed Pre-Order Due Date:

Expected Delivery Date:

Individually Boxed:

Product Information

  • Product #: 801
  • Product Line: Kadee
  • Scale: O Scale

Features:

  • Simple Drop-in Design
  • Trouble-Free Operation
  • Compatible with Kadee® O-Scale Couplers
  • World-Renowned Quality & Performance
  • They just Last & Last & Last...

Package Includes:

  • (2) Each #800 Original Style Plastic Couplers - Brown (boxcar red) - Medium Centerset Shank
  • (2) Each #817 Type Plastic Gearboxes & lids - Brown (boxcar red)
  • (3) Each #850 O Scale Centering Springs



#801 Plastic Coupler Features:

Material

 -   Plastic - Brown (boxcar red)

Shank Length

 -   Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox)

Coupler Offset

 -   Centerset

Centering Spring

 -  #850 O Scale Centering Springs

Knuckle Spring

 -   #845 O Scale Knuckle Springs

Head

 -  Original Style Head

Works In Place of

 -   #740, #745, #800, #801, #805, & #816 O Scale Medium Centerset Shank Couplers

Works With

 -   #817, #818, #819 Draft Gearboxes



#817 Type - Brown (bocar red) Plastic Draft Gearboxes & Lids Features:

Material

 -   Plastic - Brown (boxcar red)

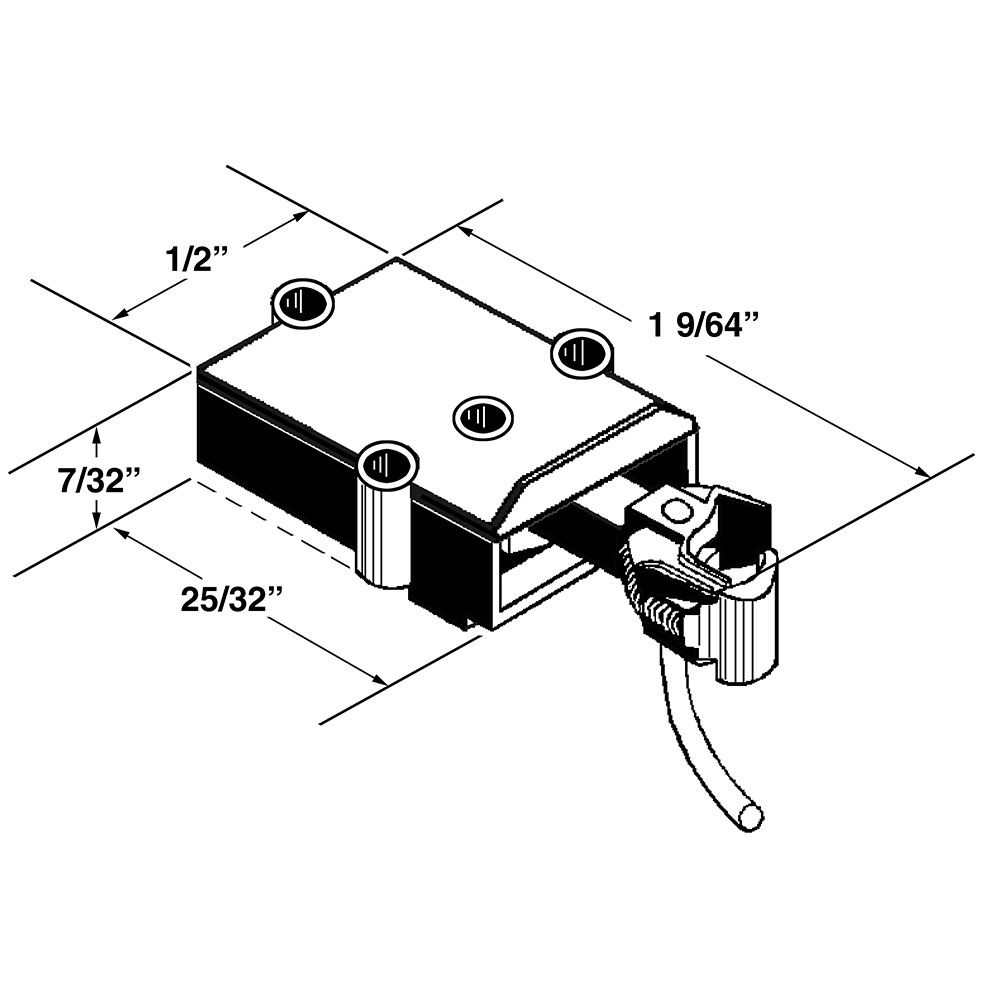

Dimensions

 -  25/32"L x 1/2"W x 7/32"H

Works With

 -   #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers

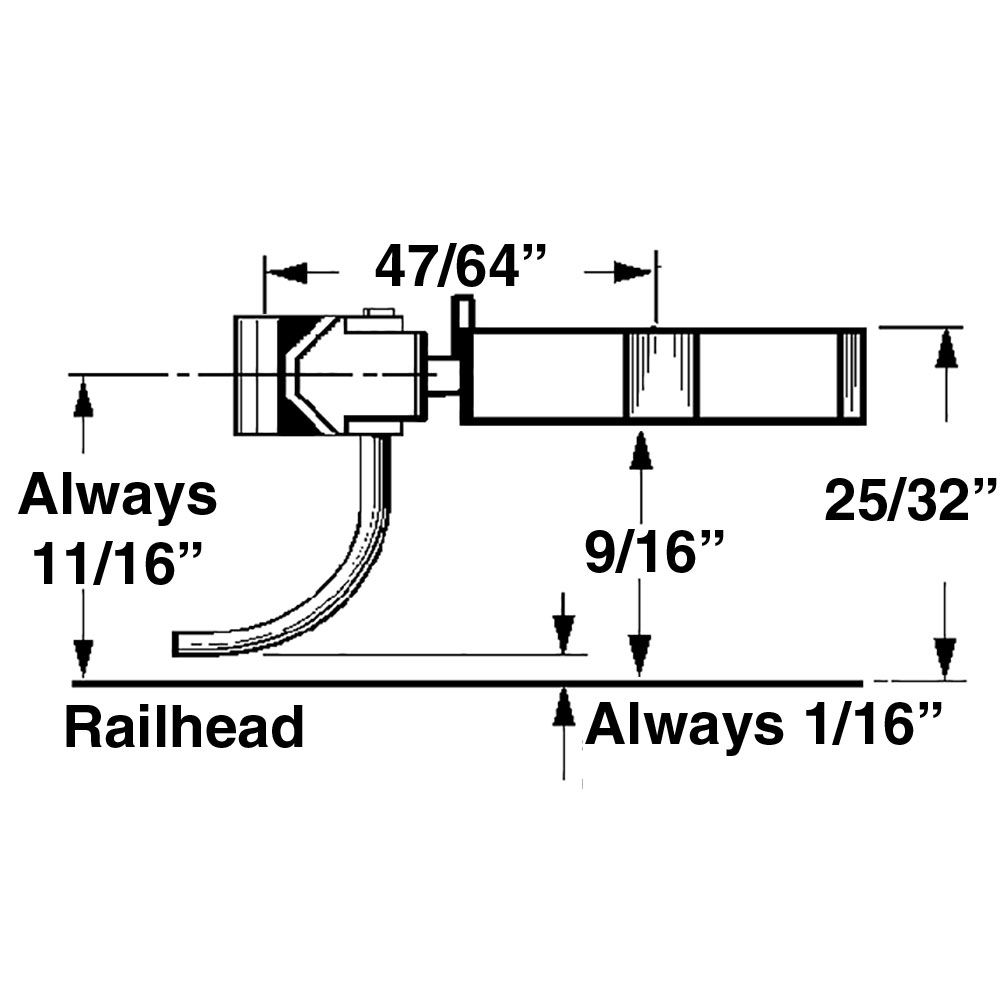

Mounting Specifications:

Mounting Height

 -   25/32"

Centerline

 -   1 1/16"

Trip Pin Height

 -   1/16"

Mounting Holes

 -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)



Overview:

This industry-leading coupler features Original Style Head Medium Centerset Metal Couplers, and #850 O Scale centering spring and comes complete with Metal Gearboxes and lids. The #804 Metal Coupler may be mounted with the included #818 Metal Gearbox or #818 Plastic Gearbox (sold separately), #819 Extended Metal Gearbox (sold separately).

Using a metal coupler directly on a metal surface or in a metal draft gearbox is not recommended to avoid possible electrical crossover and shorting that may cause damage.
